Running Gear Entanglement System for Security
The Running Gear Entanglement System (RGES) provides a non-lethal means for slowing/stopping a wide range of unauthorized propeller-driven vessels.
Horizontal Throw Range
30m
Service Pressure
310 Bars
Service Life
20 Years
Operational weight
8.3 Kg
Description

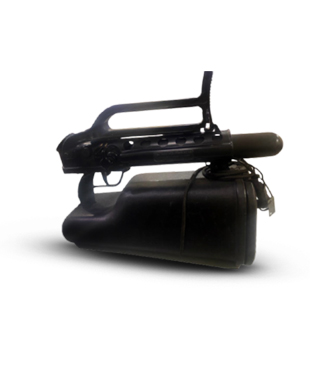

The Aska Running Gear Entanglement System (RGES) is a cutting-edge security solution powered by an air pressure cylinder. It features a lightweight, portable shoulder-fired launcher designed to trap and stop propeller-driven single and multi-engine vessels in rivers or oceans.
Serving as a first line of non-lethal defense, this running gear entanglement system is highly effective in delaying or preventing the progress of intruders or unauthorized boats. Its portable design ensures rapid deployment, making it a reliable tool for maritime security, naval operations, and protection of sensitive waterways. With the Aska RGES, controlling access and safeguarding important areas is both efficient and safe.
Features
1. Ultra-Light Carbon Composite PET Liner Air Cylinder – Ensures easy portability and quick deployment of the running gear entanglement system.
2. Wide Horizontal Throw Range – Capable of reaching up to 30 metres for effective interception of intruding vessels.
3. Durable Polycarbonate Housing – Provides strength and resilience for long-term operation of the running gear entanglement system.
4. Corrosion-Free Design – Guarantees reliability in harsh marine and environmental conditions for the running gear entanglement system.
5. PESO Approved Air Cylinder – Certified for safety and performance, ensuring the running gear entanglement system operates reliably in critical situations.
6. Portable Shoulder-Fired Launcher – Lightweight and easy to handle, enabling rapid deployment of the running gear entanglement system.
7. Non-Lethal Defense Capability – Designed to stop or delay unauthorized vessels effectively without causing harm, making the running gear entanglement system a safe security solution.
8. Low Maintenance Design – Built for durability and minimal upkeep, ensuring the running gear entanglement system is always ready for use.
| RGES Launcher | |
|---|---|
| Operational Weight (With Payload and Streamline High Pressure projectile) | 8.3Kg |
| ALM Housing | Polycarbonate |
| Streamline High Pressure Projectile | |
| Horizontal Throw Range | 30 m |
| Service Pressure | 310 bars |
| RGES with drogues length from a standoff distance of 20m | 15 m |
| Drogues | Denier Cardura fabric and ¾” flat webbing with a breaking strength of 1800kgs |
| Rope Diameter | 12 strand hollow core construction, diameter ¼”, aramid fiber |
| Ultra-Light Carbon Composite Pet Liner Air Cylinder PESO Approved | |
| Capacity | 6.8L |
| Service Life | 20 Years |
| Empty Weight of air cylinder without valve | 3.3kg |
| Refilling of Streamline High Pressure Projectiles | 7 times minimum |
| KIT Package Contents | |
| - ALM launcher-black-01 No | 08 - SCBA-DIN compressor adaptor -01No 09 - Nozzle protector (Pack of 5) |
| - Streamline high pressure projectile-01 No | 10 - O-Ring kit (10 Pack Various)-01 No 11 - Corrosion block gel -01 No |
| - RGES (50ft / 15M) with drogues in large line container qty-02 Nos | 12 - ALM operation manual-01 No 13 - Training CD-01 No |
| - Ultra Light Carbon Composite Pet Liner Air Cylinder (Type IV)-6.8 L- PESO approved-01No | - Cardura kit carry bag black-01 No |
| - CO2 and Bobbins (Pack of 5) 06 - Streamline filler hose- 01 No 07 - SCBA-DIN Adaptor-01 No | - Large storage / transportation Cas |
What is the Running Gear Entanglement System (RGES)?
RGES is a non-lethal, shoulder-fired system designed to entangle and stop unauthorized propeller-driven vessels, providing a first line of defense for border control and sensitive site protection.
How does the RGES work?
The system utilizes a lightweight, air-powered launcher to deploy a high-pressure projectile that entangles the running gear of vessels, effectively halting their movement.
What is the horizontal throw range of the RGES?
The RGES can accurately deploy its entanglement device up to 30 meters horizontally, allowing for effective engagement at a safe distance.
What is the operational weight of the RGES?
The RGES system, including the launcher and payload, has an operational weight of 8.3 kg, making it portable and easy to handle.
What materials are used in the construction of the RGES?
The launcher is made of polycarbonate housing, ensuring durability and corrosion resistance, while the air cylinder features an ultra-light carbon composite PET liner.
How long is the service life of the RGES?
The RGES is designed for a service life of 20 years, offering long-term reliability and cost-effectiveness.
What is the service pressure of the RGES air cylinder?
The air cylinder operates at a service pressure of 310 bars, providing the necessary force to deploy the entanglement device effectively.
Can the high-pressure projectiles be reused?
Yes, the streamline high-pressure projectiles can be refilled and reused up to 7 times, enhancing the system's sustainability and reducing operational costs.
What is included in the RGES kit package?
The kit includes the ALM launcher, high-pressure projectiles, air cylinder, drogues with ropes, nozzle protectors, O-ring kits, corrosion block gel, training materials, and a carry bag.
Where can I purchase the RGES?
The RGES can be purchased directly from the ASKA Equipments website or through authorized distributors.
