Composite Fire Extinguishers
Foam

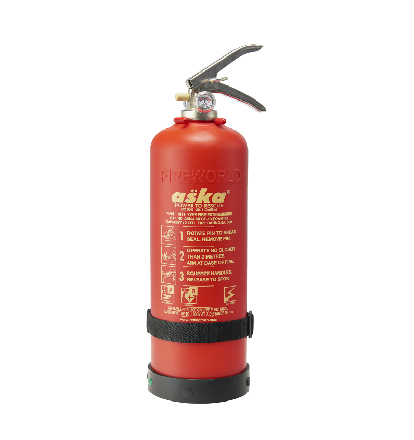

Introducing the ASKA Composite Foam Type Fire Extinguisher – Your Ultimate Fire Safety Solution!
Type
Stored Pressure
Nozzle
Nylon
Operating Pressure
12 Bar
Expellant Medium
N2 Based
Description
ASKA Composite Foam Type Fire Extinguishers contain special foam (AFFF) in its inner chamber producing of homogenous finished foam of micro sized bubbles with Nitrogen based expellant medium suitable to rapidly extinguish all types of Class A , Class B and Electrical fires. The foam has the ability to creep over the burning liquid or to soak into burning materials.
GeM Link
Features
1. ISI Marked and also complied with EN3 Standard
2 .Controlled Discharge
3. Carbon Neutral
4. Light Weight
5. 100% recyclable
6. 10-year corrosion guarantee
7. 20-year shelf life
8. Higher Strength with winding
9. Maintenance Free & Corrosion Free
10. Class A, Class B & Live Electric Power Up To 1000v
11. Unknowningly if sprayed on live current, the person would not be electrocuted.
| Particulars | Vessel Capacity | ||
|---|---|---|---|
| 2L | 6L | 9L | |
| Conformity to EN3 Standard | EN3-7 | ||
| Conformity to BIS Standard | BIS 15683: 2018 | ||
| Type | Stored Pressure | ||
| Vessel MOC | HDPE with Aramid Winding (Kevtar). Non Corrosive Type | ||
| Nozzle: | Nylon | ||
| Operating Head Material | Brass BS2872-CZ122 Nickel Plated | ||
| Hose: | N/A | EPDM Synthetic / flexi pvc | |
| Fire Ratings as per EN3 | 8A / 55B / E1000v | 27A / 183B / E1000v | 34A / 233B / E1000v |
| Operating Pressure | 12 bar | ||
| Discharge Duration (Approx.) | 18sec | 40 sec | 45 sec |
| Lancing Distance | 3m | 4m+ | 7m+ |
| Expellant Medium | N2 Based | ||
| Content | AFFF Foam | ||
| Weight (Filled) with Bracket & Belt (Belt only with 2L) | 3.30+/-0.150 Kg | 8.50+/-0.150 Kg | 11.80+/-0.150 Kg |
| Pressure Gauge | 2 Nos for land applications / 1 No for onboard ships with 1 no. schreddar value | ||
| Shelf Life | 20 Years | ||
| Corrosion Guarantee of Vessels | 10 Years | ||
| Operating Temperature Range | -5°C to +60°C | ||
| Test Pressure | 1.5 times the operating pressure | ||
| Burst Pressure | 2.5 times the operating pressure | ||
Powder
Introducing the ASKA Composite Powder Type Fire Extinguisher – Your Ultimate Fire Safety Solution!
Type
Stored Pressure
Nozzle
Nylon
Operating Pressure
12 Bar
Expellant Medium
N2 Based
Description
ASKA Composite Powder Type Fire Extinguisher contain special powder (ABC Powder) in its inner chamber with Nitrogen based expellant medium suitable to rapidly extinguish all types of Class A , Class B , Class C and Electrical fires besides being non conductive.
GeM Link
Features
1. ISI Marked and also complied with EN3 Standard
2. Special powder is a combination of Ammonium Phosphate & Ammonium Sulphate
3. Non Condutive
4. Carbon Neutral
5. Light Weight
6. 100 % recyclable
7. 10 year corrosion guarantee
8. 20 year shelf life
9. Higher Strength with winding
10. Maintenance Free & Corrosion Free
11. Class A, Class B , Class C & Live Electric Power Up To 1000v Non Conductive
| Particulars | Vessel Capacity | ||
|---|---|---|---|
| 2L | 6L | 9L | |
| Conformity to EN3 Standard | EN3-7 Standard | ||
| Conformity to BIS Standard | BIS 15683: 2018 (Clause Number 9.2.8) | ||
| Type | Stored Pressure | ||
| Vessel MOC | HDPE with Aramid Winding (Kevtar). Non Corrosive Type | ||
| Nozzle: | Nylon | ||
| Operating Head Material | Brass BS2872-CZ122 Nickel Plated | ||
| Hose: | Not Applicable | ||
| 13A / 55B / Class C & Non Conductive | 43A / 233B Class C & Non Conductive | 55A / 233B Class C & Non Conductive | |
| Operating Pressure | 12 bar | ||
| Discharge Duration ( Approx . ) | 18 sec | 20 sec | 22 sec |
| Lancing Distance | 3m | 5m + | 7m + |
| Expellant Medium | N2 Based | ||
| Content | Powder | ||
| Weight ( Filled ) with Bracket & Belt | 3.30 +/- 0.150 Kgg | 8.50 +/- 0.150 Kg | 11.80 +/- 0.150 Kg |
| Pressure Gauge | 2 Nos for land applications / 1 No for onboard ships with 1 no. schrader valve | ||
| Shelf Life | 20 Years | ||
| Corrosion Guarantee of Vessels | 10 Years | ||
| Operating Temperature Range | -30 ° C to + 60 ° C | ||
| Test Pressures | 1.5 times the operating pressure | ||
| Burst Pressure | 2.5 times the operating pressure | ||
What is a composite fire extinguisher, and how is it different from a metal one?
A composite extinguisher uses a non-metal body (e.g. HDPE plastic with aramid winding) which makes it lighter and corrosion-free. Metal ones are heavier and can rust over time.
Which classes of fire does the composite foam extinguisher handle?
The foam type is suitable for Class A (ordinary combustibles like wood, paper), Class B (flammable liquids), and electrical fires up to 1000 V.
How long is the shelf life of these extinguishers before replacement or major servicing?
They have a shelf life of 20 years. Also, the body has a 10-year corrosion guarantee.
At what operating temperature can I use these extinguishers safely?
For foam type: from −5 °C to +60 °C. For the powder type: from −30 °C to +60 °C.
What is the difference between the foam version and the powder version?
Foam version (with AFFF) is good for Class A, B, and electrical fires. Powder version (ABC powder) adds protection also for Class C (gases) and non-conductive electrical fires.
How long do these extinguishers discharge (i.e. how much time do I have once I start using them)?
Discharge duration depends on size. For example, smaller ones (~2 L) last about 18 seconds, larger (~9 L) ones give approx 40-45 seconds (foam type). Powder types are similar but somewhat shorter for larger sizes.
Are these extinguishers compliant with Indian and international standards?
Yes. They are ISI marked and also comply with the EN3 standard. They conform to BIS Standard BIS 15683: 2018 for composite extinguishers.
Can these extinguishers be used outdoors or on moving vehicles?
Yes. Because of their composite body, they resist corrosion, are lightweight, and durable. Also, for land use they come with 2 pressure gauges; for ships/boats 1 gauge with a Schrader valve. So they are suitable for varied environments.
How far does the extinguishing agent shoot (throw distance)?
Throw (lancing) distance varies with size and type: smaller units give approx 3 meters, midsize ~4-5 meters, and larger ~7 meters+.
What maintenance is needed, and how often?
These extinguishers are largely maintenance-free in terms of body corrosion. But some checks are still needed: pressure gauge, seals, nozzle, hose, etc. Probably yearly inspection or as recommended.
If I accidentally spray on live electrical equipment, is it safe?
The foam and powder types are designed to be safe up to 1000 volts, reducing the risk. But safety practices still matter—avoid direct contact, wear protection etc.
What is the “expellant medium” used?
They use Nitrogen (N₂) based gas to push out the foam or powder.
What sizes are available?
They come in vessel capacities of 2 L, 6 L, 9 L.
