High Pressure Watermist & CAFs
Combo Unit

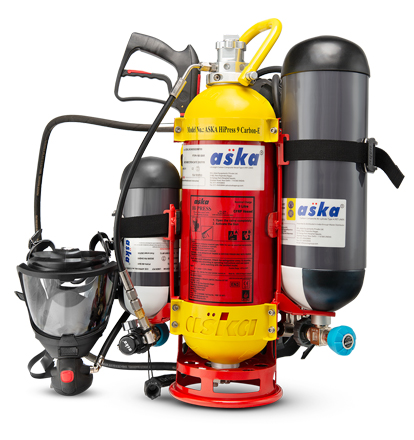

Introducing the Combo Unit with SCBA (Self-Contained Breathing Apparatus), a lightweight firefighting system designed for efficient fire control.
Working Pressure
300 Bar
Test Pressure
450 Bar
Operating Temperature
-40°C to +60°C
Working Duration
45 minutes
Description
The Aska High Pressure Watermist & CAFS combo unit is a powerful firefighting solution designed for safety, efficiency, and convenience. This advanced unit includes a special attachment: a self-contained breathing apparatus (SCBA) to protect firefighters against smoke and hazardous gases during fire incidents.
Equipped with Type-4 PET liner carbon composite cylinders made with nanotubes for carrying oxygen, the unit ensures maximum performance and safety. These cylinders are PESO-approved, providing reliable oxygen supply during critical operations. The high pressure watermist system delivers fine water droplets that absorb heat quickly, control smoke, and suppress fire effectively, making it an essential tool for modern firefighting teams.
GeM Link
Features
1. PET Liner Carbon Composite Cylinders – Made with graphene nanotubes for carrying oxygen, approved by PESO for safety and reliability in firefighting.
2. EN Standard Compliance – Ensures high performance and safety in firefighting operations.
3. Ergonomic Design – Back plate and face mask designed for comfort and compliance with applicable safety standards.
4. Lightweight Operation – Weighs between 26–30 kg, making the high pressure watermist system easy to deploy.
5. Breathing Air Capacity – Offers up to 6.8 litres of breathable air for firefighters in hazardous environments.
6. Smoke Environment Efficiency – Highly effective for firefighting in environments with heavy smoke.
7. Rapid Deployment Capability – Designed for quick response in emergencies, making the high pressure watermist system ideal for urgent situations.
8. Durable and Reliable – Built for long-term use with resistant materials ensuring consistent performance of the high pressure watermist system.
9. Enhanced Fire Suppression – Combines watermist and CAFS technology for superior control over flames and heat.
10. Integrated Safety Solutions – Includes SCBA to protect firefighters while operating the high pressure watermist system in dangerous conditions.
| Conformity to Standard | EN12245:2009+A1:2011 |
| Material of Breathing Air Cylinder Liner | Type 4 Pet liner Carbon Composite made of Nano Graphene Tubes PESO Approved |
| Type | IV Generation |
| Breathing Air Filling Capacity | 6.8 Ltr |
| Approx. Empty weight without valve and Pressure Gauge | 2.8 KG |
| Approx. Filled weight with valve and Pressure Gauge | 5.50 KG |
| Working pressure | 300 bar |
| Test Pressure | 450 bar |
| Neck Screw thread as per IS:3224 or equivalent PN-ISO 724 | M 18 X 1.5 Valve |
| CE Marking | Yes, CE 1017 |
| Operating Temperature | -40°C to +60°C |
| Test Report | TUV –SUD |
| PESO Approved Service / Shelf Life | 20 Yrs and NO LIMIT LIFE as per TUV and EN Standard 12245+A1 Clause No. 5.2.6.1 |
| Working Duration | 45 minutes |
| PESO Approved Valve Weight | Approx 625 gm ± 5% |
| Valve thread | M18 x 1.5 |
| Certification / Approval Of SCABA | EN 137 2006 Type 2 & As per new regulation EU 2016 / 425 |
| Certifications / Approval for face mask | EN 136 Class 3 |
| Input pressure (bar) | 0 – 300 |
| 4 Nominal 1st stage output pressure ) | 7.5 Bar |
| 1st stage output flow (l / min) | > 1000 |
| LDV output flow (l / min) | > 400 |
| Whistle activation pressure (bar) | 50 – 60 bar |
| Whistle sound level (dBA) | > 90 |
| Weight | Max 4 kg |
| Fire Extinguisher Operating Pressure | 37 Bar |
| Minimum Length of Hose | 1.30 mtr |
| Air Cylinder Capacity | 2L x 300 Bar |
| Material of Air Cylinders | Type 4 Pet liner Carbon composite made with Aramid Carbon fibres |
| Service Life of Air Cylinder PESO Approved | 20 years |
| Weight Of Extinguisher Gun | 750 gms. (Approx.) |
| Minimum Functional Time With Continuous Jet | 26+ sec. |
| Lancing Distance With Jet Mode | More than 12 mtr |
| Extinguishing Agent | Special Foam (Concentration 3% or 6%) |
| Propellant | Compressed Air |
| Fire Rating | A55, B233, E1000V |
| Weight | 20kg max |
Back-Pack Type
Introducing Aska High-Pressure Water Mist & CAFS Fire Extinguisher: Portable, Powerful, and Precision at Your Fingertips!
Weight Of Extinguisher Gun
750g
Lancing Distance
12m
Operating Pressure
37 Bar
Propellant
Compressed Air
Description
Aska Hand Held & Back Pack Type High Pressure Watermist & CAFS are provided for 9 litres capacity suitable for holding & carrying by hand and also on back of fire fighter making it much easier and convienient to operate at fire sites
GeM Link
Features
1. Suitable for Class A, Class B and Live Electrical Fire with fire rating of A55, B 233 & E 1000V
2. Constant operating pressure with negligible recoil.
3. Light weight gun of 750 grams.
4. System is tested as per EN 3 standard
5. PESO approved Pet Liner Air Cylinder
6. Corrosion free
7. Mist Stream can be controlled.
8. Negligible collateral damage
9. Minimum functional time with continous jet is 26 second.
10. Vessel is made from Ultralight carbon Composite with Graphene Nanotubes and PET Liner of 9L Capacity (Non Corrosive)
| Material of Vessel and Capacity | Ultralite Carbon Composite with Graphene Nano Tubes and PET Liner Vessel ( Non Corrosive ) |
| Operating Pressure | 37 Bar |
| Weight Of Filled System | 20 Kg (Approx.) |
| Minimum Length of Hose | 1.3 m |
| PESO Approved Cylinder | 2L x 300 Bar, Service Life 20 years |
| Material of PESO approved Cylinder | Ultralight Carbon Composite with Aramid Fiber and PET Liner ( Non Corrosive ) |
| Weight Of Extinguisher Gun | 750 gms. (Approx.) |
| Minimum Functional Time With Continuous Jet | 26+ sec. (Approx.) |
| With Continuous Jet | 26+ sec (Approx.) |
| Lancing Distance With Jet Mode | 12 m |
| Propellant | Compressed Air |
| Fire Rating | A55, B233, E1000V |
Bike Mounted Type
Introducing Aska Blaze Buster: Bike-Mounted High-Pressure Water Mist & CAFS Fire Extinguisher – Rapid Response for Narrow Fire Zones!
Weight Of Extinguisher Gun
750g
Lancing Distance
12m
Operating Pressure
37 Bar
Propellant
Compressed Air
Description
Aska Bike Mounted type High Pressure Water mist & CAFS are the Blaze Buster, carrying 2 vessels of 9 litres each and capable of reaching fater at narrow fire zones providing rapid response
GeM Link
Features
1. Easy movement for narrow zones duly balanced on bike
2. Can be easily carried by single fire fighter
3. Suitable for Class A, Class B and Live Electrical Fire with fire rating of A55, B 233 & E 1000V
4. Light weight gun of 750 grams.
5. Constant operating pressure with negligible recoil.
6. Light weight gun of 750 grams.
7. PESO approved Pet Liner Air Cylinder
8. Corrosion free
9. Mist Stream can be controlled.
10. Negligible collateral damage.
11. Minimum functional time with continous jet is 26 second.
12. Vessel is made from Ultralight carbon Composite with Graphene Nanotubes and PET Liner of 9L Capacity (Non Corrosive)
| Technical Specifications | 2 x 9L Ultralite Carbon Composite PET Liner Vessel |
| Operating Pressure | 37 Bar |
| Weight Of Filled System | 20 Kg (Approx.) |
| Minimum Length of Hose | 1.3 m |
| PESO Approved Cylinder | 2L x 300 Bar |
| Weight Of Extinguisher Gun | 750 gms. (Approx.) |
| Minimum Functional Time With Continuous Jet | 26+ sec. (Approx.) |
| With Continuous Jet | 26+ sec (Approx.) |
| Lancing Distance With Jet Mode | 12 m |
| Propellant | Compressed Air - Oxygen |
| Fire Rating | A55, B233, E1000V |
Trolley Mounted Type
Introducing Aska Trolley Mounted High-Pressure Water Mist & CAFS Fire Extinguisher: Versatile Mobility for Rapid and Effective Fire Extinguishing.
Weight Of Extinguisher Gun
750g
Lancing Distance
12m
Operating Pressure
37 Bar
Propellant
Compressed Air
Description
Aska trolley mounted type High Pressure water mist & CAFS have versatile mobility allowing a single operator to quickly access and reach at fire sites to rapidly and effectively extinguish the fire. It is very handy for larger fires requiring huge extinguishing agents and narrow fire sites where it is easily carried through pushing by single fire fighter.
GeM Link
Features
1. Easily towable to the fire zones with sturdy wheels & supporting attachments
2. Suitable for Class A, Class B and Live Electrical Fire with fire rating of 55A , IVB , E1000V
3. Suitable for Class A, Class B and Live Electrical Fire with fire rating of A55, B 233 & E 1000V
4. Can be used with Aska Breathing appratus in smoky environment
5. System is tested as per DIN standard
6. Carbon Composite Cylinder with PET Liner Non Corrosive Made of Graphene Nanotubes with PESO approved 20 years service life and non limited Service life as per EN 12245 + A1 standards clause No. 5.2.6.1 certifies by TUV.
7. PESO approved Pet Liner Air Cylinder
8. Corrosion free
9. Mist Stream can be controlled.
| Material of Vessel and Capacity |
50L Ultralight Carbon Composite with PET Liner made of Graphene Nano Tube 50 Liter Capacity |
| Operating Pressure | 37 Bar |
| Weight Of Filled System | 88 kg (Approx.) |
| Minimum Length of Hose | 5 m |
| Ultralite Carbon Composite PET Liner PESO Approved Cylinder - 20 years shelf life | 6.8L x 300Bar |
| Weight Of Extinguisher Gun | 750 gms. (Approx.) |
| Minimum Functional Time With Continuous Jet | 145 seconds |
| With Continuous Jet | 145 seconds |
| Lancing Distance With Jet Mode | 12 m Minimum |
| Propellant | Compressed Air - Oxygen |
| Fire Rating | 55A , IVB , E1000V |
What is the High Pressure Watermist & CAFS system?
It's a versatile firefighting system that combines high-pressure water mist and Compressed Air Foam System (CAFS) technologies to effectively suppress fires while minimizing water usage and environmental impact.
What are the different variants available?
ASKA offers four variants: Combo Unit (with SCBA), Back-Pack Type, Bike Mounted Type, and Trolley Mounted Type, catering to various firefighting needs and mobility requirements.
What is the operating pressure of the system?
The system operates at a working pressure of 37 bar, ensuring effective fire suppression capabilities.
What is the lancing distance of the system?
The system provides a lancing distance of over 12 meters in jet mode, allowing firefighters to combat fires from a safe distance.
What is the weight of the extinguisher gun?
The extinguisher gun weighs approximately 750 grams, making it lightweight and easy to handle during firefighting operations.
What is the minimum functional time with continuous jet?
The system offers a minimum functional time of 26+ seconds with continuous jet, ensuring sustained firefighting efforts.
What is the fire rating of the system?
The system is rated for Class A (A55), Class B (B233), and live electrical fires (E1000V), making it suitable for a wide range of fire scenarios.
What materials are used in the construction?
The system features ultralight carbon composite vessels with PET liners made from graphene nanotubes, ensuring durability and corrosion resistance.
Is the system approved for use?
Yes, the system complies with EN standards and is PESO approved, ensuring safety and reliability.
Where can I purchase the system?
The system can be purchased directly from the ASKA Equipments website or through authorized distributors.
