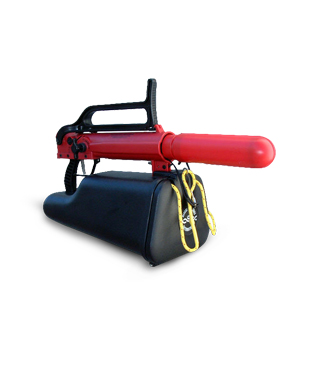

Rope Launcher (ResQmax)
Now rescue teams can deploy a line / life vest and drowning person can catch hold of the same and can be brought back to shore without risking rescue team personals life.
Size
Compact
Coverage
150 m
Rope Material
Dacron
Weight
6.2 Kg
Description
The ASKA ResQmax™ rope launcher is a high-performance rescue tool powered by compressed air, designed to save lives efficiently and safely. It can launch a rope up to 80 metres from the bank, allowing rescuers to reach a drowning person without entering the water and risking their own safety.
As a reliable rope launcher, the ASKA ResQmax™ is an essential device for emergency rescue teams, lifeguards, and maritime safety operations. Its powerful design and long-range capability ensure quick deployment in critical situations, providing a safe and effective way to connect and rescue individuals in distress.
GeM Link
Features
1. Lightweight, Non-Pyro Utility Launcher – Easy to carry and deploy, making the rope launcher ideal for quick rescue operations.
2 .Extended Rope Length – Capable of launching rope up to 150m with 3mm or 6mm diameter for wide reach.
3. Auto-Inflating Life Vest/Jacket – Comes with an auto-inflating vest at the sling end for added safety during rescue.
4. Compressed Air Powered – Provides strong and reliable rope launch performance for efficient rescue operations.
5. Long-Range Capability – Designed to deliver rope over long distances, making the rope launcher perfect for water rescue scenarios.
6. Durable Construction – Built to withstand harsh environments, ensuring the rope launcher remains dependable over time.
7. Easy to Operate – Simple design allows quick and safe deployment even in emergency situations.
8. Marine-Grade Safety – Specially designed for rescue teams and lifeguards to ensure safe rope deployment in marine conditions.
| Operational Weight ( With rope container and projectile ) | 6.2 Kg | |||
|---|---|---|---|---|
| Launcher Housing | Polycarbonate | |||
| Standard Line Projectile | Sling Projectile | |||
| Horizontal Throw Range | 80 m | Horizontal Throw Range | 50 m | |
| Material Cover | Polyethylene | Material Cover | Polyethylene | |
| Service Pressure | 207 bar | Service Pressure | 207 bar | |
| Rope Length | 150 m | Rope Length | 100 m | |
| Rope Material | Dacron | Rope Material | Polypropylene | |
| Rope Diameter | 3 mm | Rope Diameter | 6 mm | |
| Ultra-light carbon composite Pet Liner Air Cylinder | KIT Package Contents | |||
| Capacity | 6.8L | 01 - Sling projectile with 4 spare burst capsules | ||
| Service Life | 20 Years | 01 - Standard projectile (with 2 spare cover)- 207 bars 02 - Sets of CO2 and Bobbins – Packs of 5 each | ||
| Empty Weight of air cylinder without valve | 3.3kg | 01 - Standard projectile (with 2 spare cover)- 207 bars 02 - Sets of CO2 and Bobbins – Packs of 5 each 01 - 6mm polypropylene line (100 Meter) with compact container 01 - 3mm Dacron Line (150 Meter) with compact container | ||
| Refilling of Projectiles | 7 times Min. | 01 - Ultra Light Carbon Composite Pet Liner Cylinder (Type IV)-6.8 L- PESO approved 01 - Filler Hose 01 - Nozzle Protector (Pack of 5) 01 - O-Ring Kit (10 Pack Various) 01 - Corrosion Block Gel 01 - Operator Manual 01 - Training CD | ||
What is the ResQmax Rope Launcher?
The ResQmax Rope Launcher is a non-pyrotechnic, compressed-air-powered device designed to quickly deploy a rope or life vest to a person in distress in water, up to 80 meters away.
How does the ResQmax work?
It uses compressed air to propel a projectile that carries a rope or life vest to the target, allowing rescue teams to assist individuals without entering the water themselves.
What is the maximum rope length supported?
The ResQmax supports rope lengths up to 150 meters, with options for 3mm Dacron or 6mm polypropylene rope.
What is the weight of the ResQmax?
The operational weight of the ResQmax, including the rope container and projectile, is 6.2 kg, making it portable and easy to handle.
What materials are used in the construction?
The launcher housing is made of durable polycarbonate, and the air cylinder features an ultra-light carbon composite PET liner.
How far can the ResQmax deploy a rope?
The ResQmax can deploy a rope up to 80 meters horizontally, allowing for effective rescue operations from a safe distance.
Is the ResQmax suitable for various rope diameters?
Yes, the ResQmax is compatible with ropes of 3mm (Dacron) and 6mm (polypropylene) diameters, providing flexibility for different rescue scenarios.
What is included in the ResQmax kit?
The kit includes the launcher, high-pressure projectiles, air cylinder, ropes, nozzle protectors, O-ring kits, corrosion block gel, training materials, and a carry bag.
Is the ResQmax suitable for both freshwater and saltwater environments?
Yes, the ResQmax is designed for use in both freshwater and saltwater environments, making it versatile for various rescue situations.
Where can I purchase the ResQmax Rope Launcher?
The ResQmax Rope Launcher can be purchased directly from the ASKA Equipments website or through authorized distributors.
