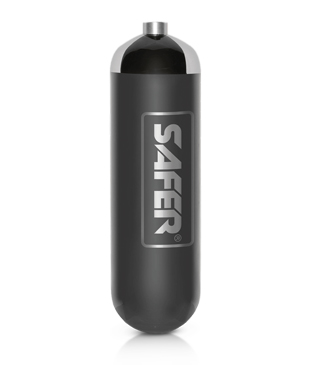

Type 4 Carbon Composite Cylinders with Graphine Nano Tubes & PET Liner
Graphene Nano Tube is a form of carbon with a single layer of carbon atoms.
Material
Graphine Nano Tubes
Service Life
20 Years
Working Pressure
300 Bar
Test Pressure
450 Bar
Description
Aska’s latest innovation in the SAFER® series introduces an advanced composite cylinder designed with cutting-edge Graphene Nano Tube technology. Graphene, a single layer of carbon atoms, is the thinnest material known and offers an exceptional surface area-to-volume ratio. This unique property makes the cylinder extremely lightweight while maintaining superior strength — up to ten times stronger than steel — ensuring maximum safety and durability in high-pressure environments.
These composite cylinders are ideal for rescue operations, breathing apparatuses, and other critical applications where reliability and performance are essential. With a focus on innovation and quality, Aska delivers cylinders that combine strength, longevity, and ease of handling, setting new standards in modern safety equipment.
Features
1. Extremely lighter in weight
2. Type IV carbon composite cylinders with high-quality Graphene Nano Tubes & PET liner, approved by PESO
3. Complies with EN standards for quality and safety
4. Available in 1 L, 4.7 L, 6 L, 6.8 L, 8 L, 9 L, and 10 L variants
5. Corrosion-resistant PET liner ensures long-lasting gas purity and durability
6. Advanced composite cylinder design offers superior fatigue and impact resistance
7. Protective outer coating safeguards the cylinder from UV rays and harsh environments
8. Lightweight composite cylinders reduce user fatigue and enhance mobility during rescue operations
| Parameters | Safer Type IV Carbon and Aramid Fiber Air Cylinders | Type III Carbon Composite Aluminum Liner Air Cylinders | Advantages of Safer’s Ultralite Carbon Composite Pet Liner Air Cylinder |
|---|---|---|---|
| Size | 6.8 L | 6.8 L | Type IV (Latest Technology) Cylinder with PET Liner |
| Weight without valve | 3.3 Kg | 4.1 Kg | Less fatigue to user is always best in harsh environments, 800 grams lighter (in Carbon and Aramid Fiber Air Cylinders) |
| Service Life | 20 Years PESO Approved. NO Limit Life (TUV approved) | 15 Years | More than 5 Years Extended Service life 20 Years Life (PESO Approved) No Limit Life (TUV Approved) |
What exactly are “Type-4 Carbon Composite Cylinders with Graphene Nano Tubes & PET Liner”?
They’re advanced breathing/air cylinders made with high-strength, lightweight carbon composite material, enhanced with graphene nanotubes and a PET liner. They are built to be lighter but highly durable, for rescue / high-pressure use. (Aska Equipments Private Limited)
How much pressure can these cylinders handle?
These cylinders are designed to work safely at 300 Bar (about 4350 psi). During testing, they are pressure-tested up to 450 Bar (about 6525 psi) to ensure durability and safety.
What is the service life of these cylinders?
They have a service life of 20 years.
Are they certified and what standards do they meet?
Yes — they are approved by PESO. They also comply with relevant EN standards.
What sizes are available (in litres)?
They are made in several variants: 4.7 L, 6 L, 6.8 L, 8 L, 9 L and 10 L.
How much lighter are they compared to older or metal cylinders?
For example, a 6.8 L variant of this type weighs about 3.3 kg (without valve), versus ~4.1 kg for a similar older carbon/aramid version — so you save ~800 grams.
Is the cylinder safe against damage, and what makes the graphene nanotubes helpful?
The graphene nanotubes and PET liner help increase strength, reduce weight, improve resilience. This makes the cylinder more robust in harsh conditions, with better performance vs standard steel or older composite bodies.
Can these cylinders be used for rescue, firefighting or industrial breathing systems?
Yes—they are designed for rescue use (breathing air, rescue operations) where weight, pressure capacity and reliability matter. They suit professional / industrial applications.
What happens after 20 years — can they still be used?
The service life is stated as 20 years. After that, the safe use would depend on condition, inspections, replacement rules, standards. It’s best to check with qualified service engineers.
How can I order or get more technical information about these cylinders?
You can download the product brochure available on the page, or use the “Enquiry Now” option. Also contacting ASKA via their sales/service contact will get you full specs and pricing.
